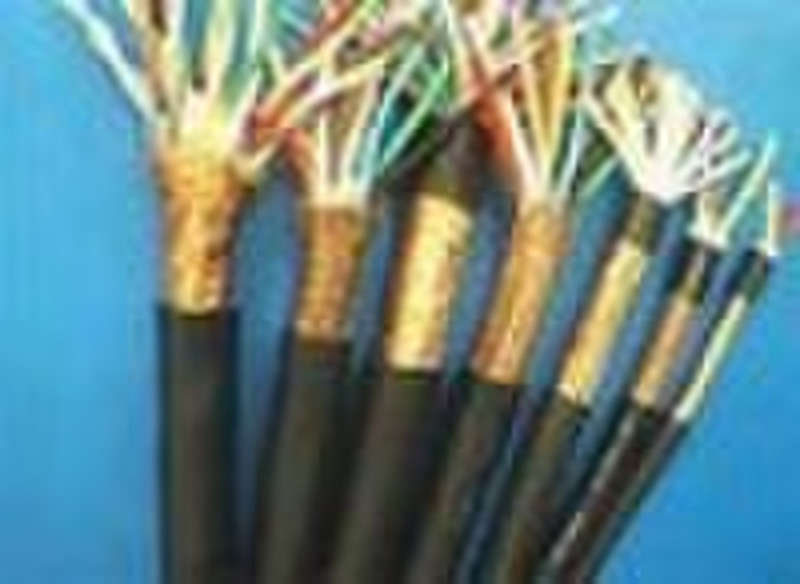

XLPE Insulation Power Cable of 35KV or Lower

Applications: The cable is used to transmit power on the power transmission and distribution line of AC 50Hz, rated voltage 35kV or lower. In comparison with PVC insulation cable, it boasts not only excellent electric character, mechanical character, heat and aging-resistant character, environmental stress-resistant character and chemical corrosion-resistant character, but simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working (90°C)as well. Executive Standard: As Section (Extrusion Insulated Power Cable & Accessories Rated Voltage 1KV (Um=1.2KV) to 35KV (Um=40.5KV) ) in GB /T12706.1-12706.4-2002, or according to IEC60502-1997 as customers requirement. Cable Length to be delivered:It should be generally no shorter than 100 meters per piece. The cable no shorter than 30 meters is allowed for delivery, which accounts for no more than 10% of the total. It depends on final both agreements with length error of no more than ±0.5%. The kinds of power cables include:1. Model No.: YJV, YJLV- 3.6/6KV single core, XLPE insulation, PVC sheath power cable;2. Model No.: YJV, YJLV- 6/6KV, 6/10KV single core, XLPE insulation, PVC sheath power cable;3. Model No.: YJV, YJLV- 3.6/6KV three cores, XLPE insulation, PVC sheath power cable;4. Model No.: YJV, YJLV- 6/6KV, 6/10KV three cores, XLPE insulation, PVC sheath power cable;5. Model No.: YJV, YJLV- 8.7/10KV, 8.7/15KV single core, XLPE insulation, PVC sheath power cable;6. Model No.: YJV, YJLV- 12/20KV single core, XLPE insulation, PVC sheath power cable;7. Model No.: YJV, YJLV- 18/20KV, 18/30KV single core, XLPE insulation, PVC sheath power cable;8. Model No.: YJV, YJLV- 21/35KV single core, XLPE insulation, PVC sheath power cable;9. Model No.: YJV, YJLV- 26/35KV single core, XLPE insulation, PVC sheath power cable;10. Model No.: YJV, YJLV- 8.7/10KV, 8.7/15KV three cores, XLPE insulation, PVC sheath power cable;11. Model No.: YJV, YJLV- 12/20KV three cores, XLPE insulation, PVC sheath power cable;12. Model No.: YJV22, YJLV22- 3.6/6KV three cores, XLPE insulation, steel tape armored, PVC sheath power cable;13. Model No.: YJV22, YJLV22- 8.7/10KV, 8.7/15KV three cores, XLPE insulation, steel tape armored, PVC sheath power cable;14. Model No.: YJV22, YJLV22- 12/20KV three cores, XLPE insulation, steel tape armored, PVC sheath power cable;For more details, please contact us today!
